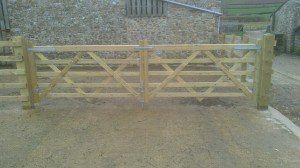

Standard Diamond Braced Field Gate
The standard field gate is made with semi-planed tanalised softwood timber. This gate is ideal as an entrance gate, but also strong enough to be used as a field gate.
- Height to top of hanging stile 1.20m (47")
- Height to top of top rail 1.12m (44")
- Top rail 100 x 75mm (4" x 3")
- Diamond bracing over 1.8m (6') wide, single cross brace under 1.8m (6') wide
- Galvanised carraige bolts at rail crossovers, and metal dowel fixings at top rail and stile joint (mortice & tenon).
Standard size widths between 0.9m (3') and 3.6m (12') are available. Custom sizes up to 4.5m (15') are also available to order.
